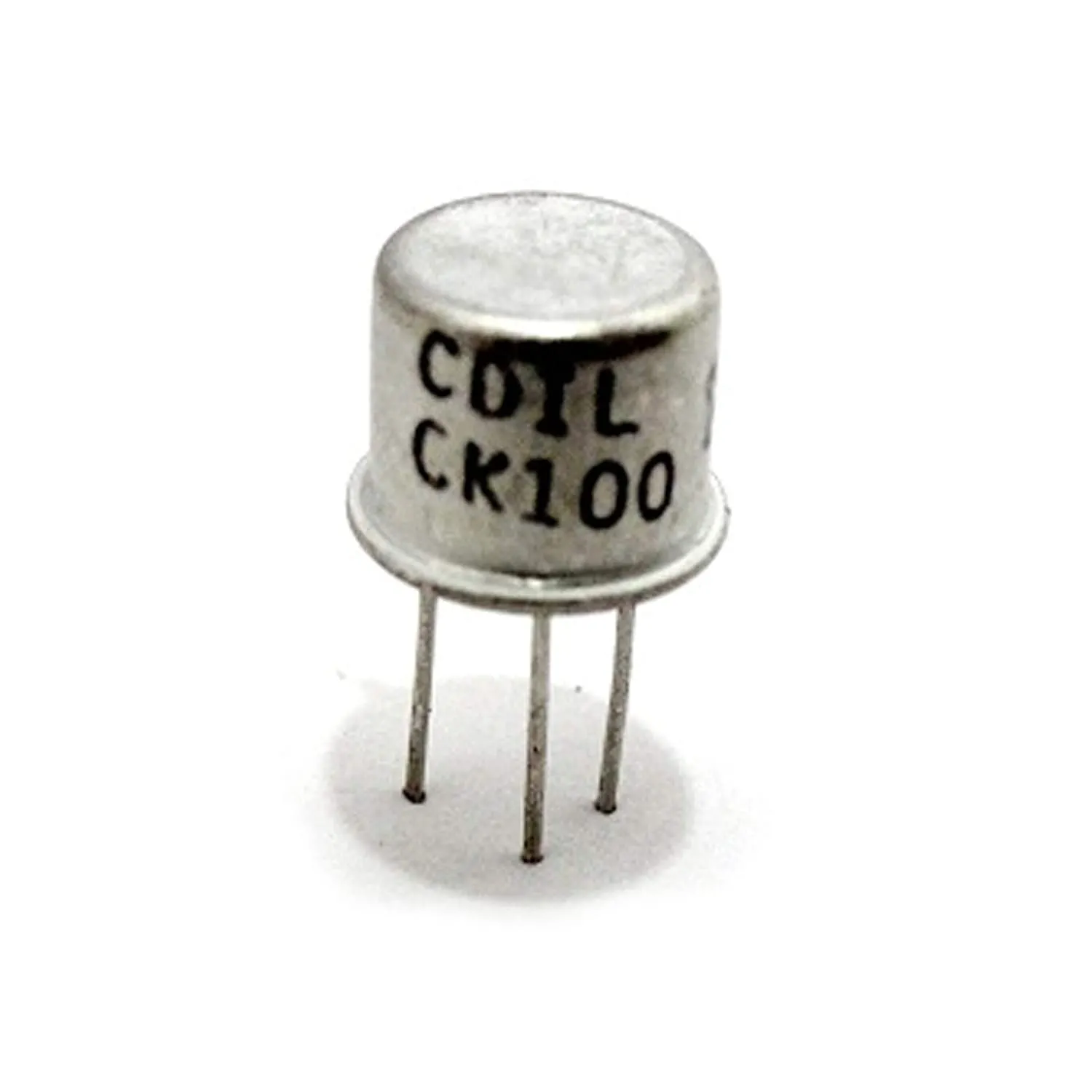

• CK100 General Purpose Medium Power PNP Transistor
• Transistor Polarity: PNP
• Collector−Emitter Voltage (VCEO): 50V
• Collector−Base Voltage (VCBO): 60V
• Continuous Collector Current (Ic): 1A
• Emitter Base Voltage (VEBO): 5V
• Power Dissipation (Pd): 800mW
• Operating Temperature Range: -65 ~ 200°C
• Output Capacitance (Cobo): 20pF
• DC Current Gain (hFE): 40-300

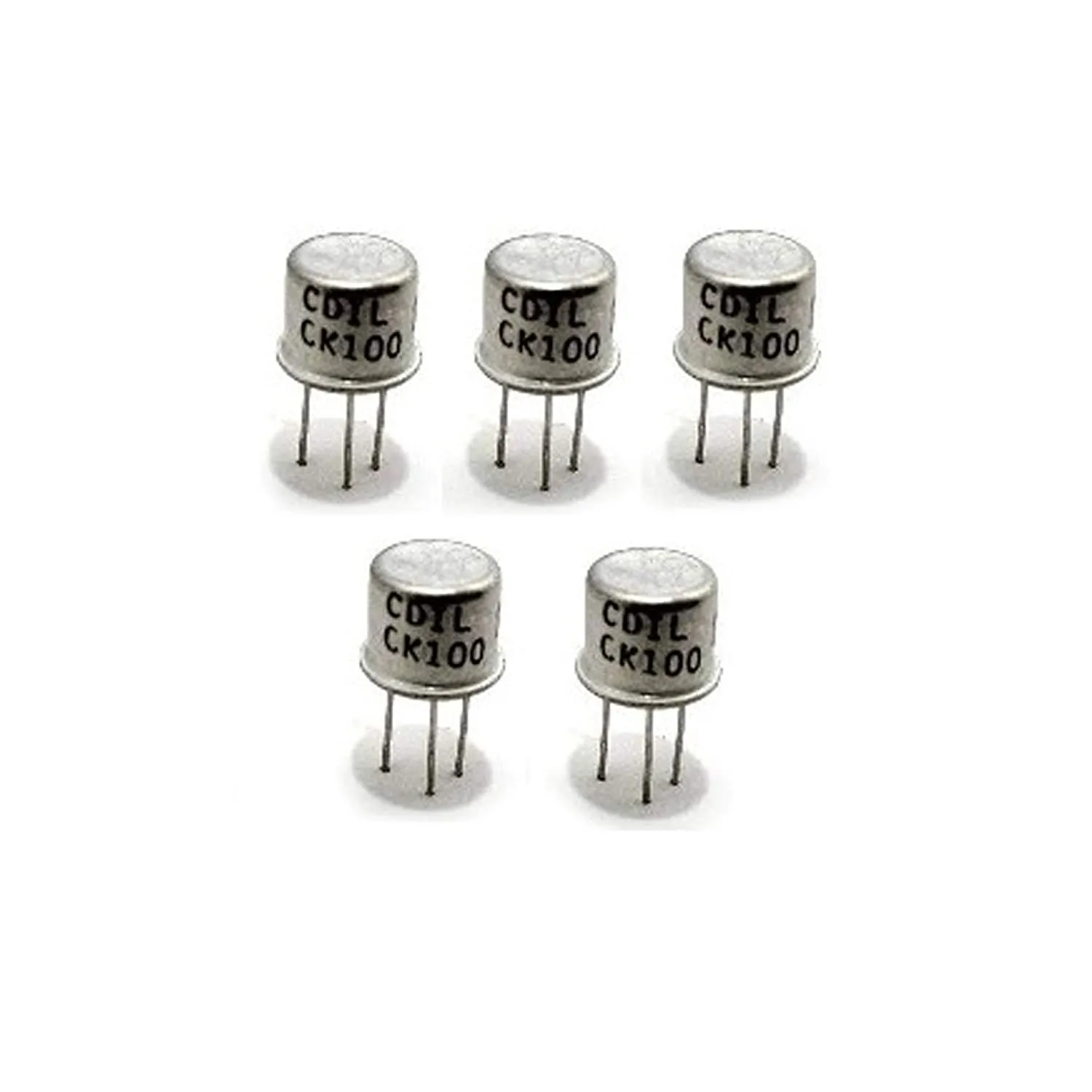

SK100 PNP General Purpose Medium Power Transistor TO-39 Metal Package

This device is designed for switching and amplifier applications. CK100 is a three-layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector-emitter voltage VCE. This Product Known as Component, General Purpose Medium Power PNP Transistor, General Purpose Transistor, Medium Power Transistor, PNP Transistor, CK100, CK100 General Purpose Medium Power PNP Transistor, CK100 Transistor, Transistor

Features/Specs:

• Transistor Polarity: PNP
• Collector−Emitter Voltage (VCEO): 50V
• Collector−Base Voltage (VCBO): 60V
• Continuous Collector Current (Ic): 1A
• Emitter Base Voltage (VEBO): 5V
• Power Dissipation (Pd): 800mW
• Operating Temperature Range: -65 ~ 200°C
• Output Capacitance (Cobo): 20pF
• DC Current Gain (hFE): 40-300
• High Ruggedness
• Simple drive requirements
• The high safe operating area
• For low distortion complementary designs
• Easy to carry and handle
• Package: TO-39 Metal

Application:

• General-purpose switching and amplification
• General Purpose Medium Power Transistor

Package includes:

• 1 x CK100 PNP General Purpose Medium Power Transistor TO-39 Metal Package
